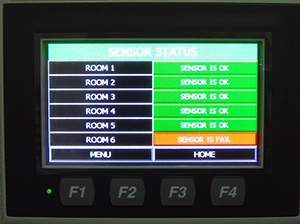

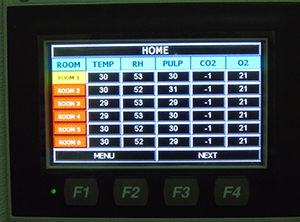

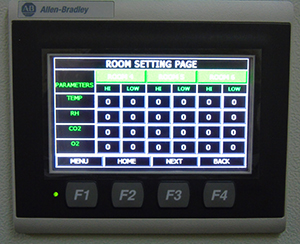

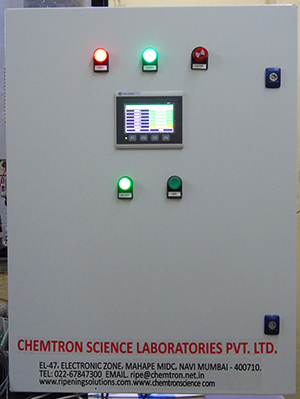

Ripening facility can be 100 % sure about the parameters in the ripening process with the help of our gas analyzer panel. This panel monitors Carbon dioxide, Ethylene, Temperature and RH. We provide centralized gas analyzers for ripening chambers, wherein the CO2 and Ethylene sensors are present inside the panel. No room gas sensors are required so this saves big cost both in capital as well as service expense. The gas composition analyses of ripening room are done through sampling where a vacuum pump present inside the panel sucks air samples from ripening room and analyses it and shows the value on the colour touch screen. Air samples can be taken from maximum distance of 100 meters and analyze the gas composition in 6 minutes of time. One panel can analyze maximum of 10 rooms where one room will be sampled every 1 hour. Rooms under dosing of Ethylene is given priority. User can fix set alarm points to keep the parameters under check, the panel also has potential free control output for each parameter that is monitored for each room.
Features:
- Centralized panel for up to 10 rooms
- Gas sampling in 6 months, dosing rooms given priority
- Carbon Dioxide (CO2) and Ethylene (C2H4) of each room can be analysed
- Temperature, RH and pulp temperature can be monitored
- SCADA monitoring and controlling
- Data logging
- Audio and visual alarms
- Trends and graphs for analysis
- Potential free control output for each parameter for each room can be used for control or alarms
Monitoring Parameters:
Sr. No. |
Parameter |
Range |
1. |
Carbon dioxide (CO2) |
0 – 10 / 20 / 100% vol |
2. |
Ethylene (C2H4) |
0 – 200 / 500 / 2000 ppm |
3. |
Ambient Temperature |
0 - 50 Deg C |
4. |
Pump Temperature |
0 - 50 Deg C |
5. |
Relative Humidity (RH) |
0 - 98% |
Specifications:
Operating Conditions |
Operating temperature |
0° C to 50° C |
Operating Humidity |
Maximum 75% |
Product Specifications |
Detector |
Multi gas |
Detection parameters |
%, ppm |
Number of rooms |
Up to 10 rooms |
Detection parameters |
Carbon dioxide, Ethylene, temperature, RH and fruit pulp temperature |
Sensing type |
Suction type |
Display |
7”Colourtouch HMI |
Pumps |
Diaphragm vacuum pump @ 18 LPM |
Sampling frequency |
6 minutes per room, dozing rooms given priority |
Alarms |
HMI / Buzzers / Indicators / Controls |
Battery Backup |
Up to 1 hour (Optional) |
Battery |
24 V 1200 mAH |
Calibration cylinders |
No |
Data Acquisition System |
SCADA |
Yes |
Remote Monitoring |
Through 3rd partysoftware |
Data logging device |
SCADA PC (on customers scope) |
Trends |
On HMI and SCADA |
Electrical |
Supply |
AC-230V, single phase or AC 440V 3 Phase (for panels with battery backup) |
Panel Details |
IP Protection |
IP 65 |
Dimensions |
600 x 400 x 600mm (l x b x h) |
Weight |
25 kg |
Exterior finish |
Powder coated gray |
Warranty |
2 years |
