Sensors & Transmitters

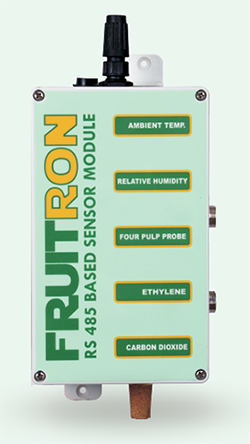

Smart Sensor Module for Cold Rooms:

• Most comprehensive sensor module measuring all key parameters responsible for uniform ripening which are Temperature, RH, Pulp, Ethylene and CO₂
• Sensor module communicates on RS 485 hence no transmission losses over long distances very typical to cold storages
• IP-65 housing designed for harsh environment which are prevalent for ripening chambers

Specifications:

General
Supply	24 V DC, single phase, 50 Hz
Wattage	8W
Dimensions	200mm x 120 x 75mm
Weight	400gm
Communication	RS 485 RTU (2 wire config)
Inputs (4 + 8)	4 RTD and 8 Analog 4-20 mA / 0-10V DC
Operating Temperature and Humidity	0 - 60°C and 0 - 95% RH for the unexposed parts
Ambient Temperature Sensor
Operating Principle	Band Gap
Measuring Range	0-50 ⁰ C
Accuracy	0.1°C
Response Time	5 seconds
Resolution	0.1°C
Output Signal	Digital SPI
Pulp Temperature Sensor
Operating Principle	PT 100 4 wire configuration
Measuring Range	0-50 ⁰ C
Accuracy	0.1°C
Response Time	5 seconds
Resolution	0.1°C
Output Signal	Resistance
RH Sensor
Operating Principle	Capacitive
Measuring Range	0-98 %
Accuracy	1%
Response Time	5 seconds
Resolution	1%
Output Signal	Digital SPI
Carbondioxide Sensor
Operating Principle	NDIR
Weight	2 kg
Exterior Finish	Powder Coating (RAL-7035)
Power Chord	3-PIN PLUG, 1.5Mtr
Power Chord	3-PIN PLUG, 1.5Mtr
Power Chord	3-PIN PLUG, 1.5Mtr

Other Sensor Transmitters:

General Specifications:

• Dimensions: 100 * 70 * 50 mm
• Weight: 200g
• Enclosure: IP 65
• Calibration: Span, Zero
• Input voltage: 24V DC
• Signal Output: 0-10 VDC / 0-5VDC / 4-20 mA
• Output Linearity: Linear

1. Ammonia Transmitter
   1. Measurement range: 0-500 ppm
   2. Sensing method: Electrochemical
   3. Resolution: 0.1ppm
   4. Repeatability: 1% of Signal
   5. T90 Response Time: <140 seconds


2. CO₂ Transmitter
   1. Measurement range: 0-5 %, 0-10%
   2. Sensing method: NDIR
   3. Resolution: 0.1%
   4. Repeatability: 1% of Signal
   5. T90 Response Time: <120 seconds


3. Ethylene Transmitter
   1. Measurement range: 0-200 ppm
   2. Sensing method: Electrochemical
   3. Resolution: 1ppm
   4. Repeatability: 1% of Signal
   5. T90 Response Time: <180 seconds


4. H₂S Transmitter
   1. Measurement range: 0-200 / 0-1000 / 0-2000 ppm
   2. Sensing method: Electrochemical
   3. Resolution: 1ppm
   4. Repeatability: 1% of Signal
   5. T90 Response Time: <180 seconds


5. Methane Transmitter
   1. Measurement range: 0-100% LEL
   2. Sensing method: Electrochemical
   3. Resolution: 0.1% LEL
   4. Repeatability: 1% of Signal
   5. T90 Response Time: <180 seconds


6. Oxygen Transmitter
   1. Measurement range: 0-30%
   2. Sensing method: Electrochemical
   3. Resolution: 0.1%
   4. Repeatability: 1% of Signal
   5. T90 Response Time: <120 seconds
