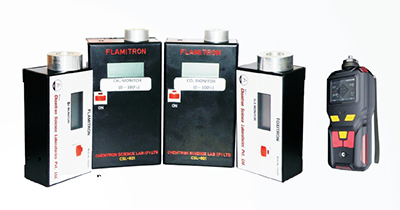

Portable Gas Analyzers
Single Gas Portable Gas Analyser ‘Toxitron Series’
Applications:
- Field use
- Site survey
- Leak detection
- Gas validation
- Diagnostics
Specification:
| Display |
1 x 4 Alphanumeric |
| Detection method |
Direct exposure |
| Datalogging |
NO |
| Detection accuracy |
Less than 1% (F.S) |
| Linearity |
Less than 2% |
| Repeatability |
Less than 2% |
| Alarm mode |
NO |
| Response time: T90 |
< 20 seconds |
| Recovery time |
< 30 seconds |
| Operating power |
DC 9 V |
| Battery capacity |
9VDC, Recharchable Zinc Carbon |
| Charger |
Charger adapter |
| Working temperature |
- 40℃ to +70℃ |
| Working humidity |
0-85% RH |
| Sample gas temperature |
-40℃ to C20+70℃ |
| Explosion-proof type |
NO |
| Protection degree |
NO |
| Dimension |
160 x 70 x 45mm (LxWxH) |
| Weight |
280g |
| Standby hours |
12 |
| Time to fully charge |
2 hours |
| Sr. No. |
Detection Gas |
Range |
Resolution |
Accuracy |
Sensor Type |
| 1. |
Ammonia (NH3) |
0 - 20 ppm |
0.1 ppm |
± 1 % FS |
Electrochemical |
| 2. |
Ammonia (NH3) |
0 - 200 ppm |
1 ppm |
± 1 % FS |
Electrochemical |
| 3. |
Chlorine (Cl2) |
0 - 200 ppm |
1 ppm |
± 1 % FS |
Electrochemical |
| 4. |
Ethylene (C2H4) |
0 - 2000 ppm |
1 ppm |
± 2 % FS |
Electrochemical |
| 5. |
Ethylene Oxide (C2H4O) |
0 - 200 ppm |
1 ppm |
± 1 % FS |
Electrochemical |
| 6. |
Hydrogen (H2) |
0 - 2000 ppm |
1 ppm |
± 2 % FS |
Electrochemical |
| 7. |
HydrogenSulphide (H2S) |
0 - 2000 ppm |
1 ppm |
± 2 % FS |
Electrochemical |
| 8. |
Hydrogen Chloride (HCL) |
0 – 200 ppm |
1 ppm |
± 1 % FS |
Electrochemical |
| 9. |
Nitrogen Monoxide |
0 – 2000 ppm |
1 ppm |
± 1 % FS |
Electrochemical |
| 10. |
Nitrogen Dioxide (NO2) |
0 – 200 ppm |
1 ppm |
± 1 % FS |
Electrochemical |
| 11. |
Oxygen (O2) |
0 – 30 % |
0.1 % |
± 3 % FS |
Electrochemical |
| 12. |
Sulphur Dioxide (SO2) |
0 - 1000 |
1 ppm |
± 2 % FS |
Electrochemical |
Multi Gas Portable Gas Analyser
Application:
- Bio Gas plants / research
- Cold Storages, Controlled atmosphere storages
Specification:
| Display |
2.31 inch 320X240 high-definition color screen display |
| Detection method |
Built in pump suction, flow 500 ml / min. |
| Datalogging |
10000 samples, can be transferred to PC through USB |
| Detection accuracy |
Less than 3% (F.S.) |
| Linearity |
Less than 2% |
| Repeatability |
Less than 2% |
| Alarm mode |
Sound and light alarm, vibration alarm, visual alarm |
| Response time: T90 |
20 seconds |
| Recovery time |
< 30 seconds |
| Operating power |
DC3.6V |
| Battery capacity |
3.6VDC, 4500mA |
| Charger |
USB Charger |
| Working temperature |
- 40℃ to +70℃ |
| Working humidity |
0-95% RH |
| Sample gas temperature |
-40℃ to C20+70℃ |
| Explosion-proof type |
EX ia IIC T4 |
| Protection degree |
IP65，Dustproof, waterproof splash |
| Dimension |
160×70×28mm (L×W×H) |
| Weight |
300g |
| Standby hours |
8 to 10 |
| Time to fully charge |
4 hours |
| Sr. No. |
Application |
Model |
Detection Gas |
Range |
Resolution |
| 1. |
Bio Gas |
PGABG4 |
Carbon dioxide (CO2), |
CO2: 0-20% vol |
CO2: 1 % / 0.1 % / 0.01% |
| Oxygen (O2), |
O2: 0-30% vol |
O2: 1 % / 0.1 % / 0.01% |
| Methane (CH4), |
CH4: 0-100% lel |
CH4: 1 % / 0.1 % / 0.01%
|
| Hydrogen Sulphide (H2S) |
H2S: 0-2000 ppm |
H2S: 1 ppm |
| 2. |
Bio Gas |
PGABG3 |
Carbon dioxide (CO2) |
CO2: 0-20% vol |
CO2: 1 % / 0.1 % / 0.01% |
| Methane (CH4), |
CH4: 0-100% lel |
CH4: 1 % / 0.1 % / 0.01% |
| Hydrogen Sulphide (H2S) |
H2S: 0-2000 ppm |
H2S: 1 ppm |
| 3. |
Bio Gas |
PGABG2 |
Methane (CH4), |
CH4: 0-100% lel |
CH4: 1 % / 0.1 % / 0.01% |
| Hydrogen Sulphide (H2S) |
H2S: 0-2000 ppm |
H2S: 1 ppm |
| 4. |
Cold Storages |
PGACS3 |
Oxygen (O2) |
0 – 30 % vol |
O2: 1 % / 0.1 % / 0.01% |
| Carbon dioxide (CO2) |
0 – 20 % vol |
CO2: 1 % / 0.1 % / 0.01% |
| Ethylene (C2H4) |
0 – 2000 ppm |
C2H4: 1 ppm |
| 5. |
Cold Storages |
PGACS2A |
Oxygen (O2) |
0 – 30 % vol |
O2: 0.1 % / 0.1 % / 0.01% |
| Ethylene (C2H4) |
0 – 2000 ppm |
C2H4: 1 ppm |
| 6. |
Cold Storages |
PGACS2B |
Carbon dioxide (CO2) |
0 – 20 % vol |
CO2: 1 % / 0.1 % / 0.01% |
| Ethylene (C2H4) |
0 – 2000 ppm |
C2H4: 1 ppm |
| 7. |
Cold Storages |
PGACS2C |
Carbon dioxide (CO2) |
0 – 20 % vol |
CO2: 1 %/ 0.1% / 0.01% |
| Oxygen (O2) |
0 – 30 % vol |
O2: 1 % / 0.1 % / 0.01% |
