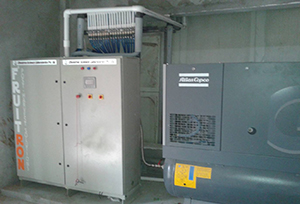

Memberane Based N2 Generator
We are the manufacturers of membrane based nitrogen generators that gives constant flow of high quality nitrogen at a low operating cost. The Nitrogen generators have various applications across many industries such as:
- Controlled Atmosphere cold storages
- Tyre filling
- Autoclaves and Furnaces
- Blanketing applications for many industries (agro, pharmaceuticals)
- Fire prevention (server rooms)
- Laboratories
Features:
- Nitrogen production using Membrane technology which assures long life with minimal maintenance
- Best in the world membranes imported from Japan, Netherlands and the USA
- No Mechanical moving parts
- Instant Nitrogen generation, generation on demand
- Noise free Nitrogen production
- Nitrogen generated is oil free, dust free and VOC free that’s helps to keep the commodity clean
- Variable Nitrogen output from 90% to 99.5%
- Models from 5 m3/hr to 60 m3/hr as required as per free air volume
- Smart controls enables quicker pulldown, can be fully automated for unattended operation
- Saves time cost and energy
- Safe as it works at low pressures and there is no hazardous waste generated
- Cheaper than PSA, lower installation costs, low operating and maintenance cost
Model | Operating pressure in Kg/Cm2 | N2 outout in m3/hr | ||
---|---|---|---|---|
@ 5 % O2 | @ 1 % O2 | @ 0.5 % O2 | ||
Model CSL-N2G-10M3A | 10-13 | 10 | 2 | 1 |
Model CSL-N2G-20M3A | 10-13 | 20 | 5 | 2 |
Model CSL-N2G-40M3A | 10-13 | 40 | 15 | 5 |
Model CSL-N2G-60M3A | 10-13 | 60 | 20 | 10 |
