Controlled Atomosphere Systems
To store fruits for some duration you need refrigeration and to extend this duration by 2 to 3 folds you need a controlled atmosphere (CA) storage solution. In CA, fruit specific Oxygen (O2), Carbon dioxide (CO2) and Ethylene (C2H4) is maintained along with temperature for the very maximum storage duration.
After years of research and development we have launched completely indigenised Controlled Atmosphere (CA) storage solutions for the long term storage of fruits and vegetables. We provide the latest technology which has now become a benchmark for these systems for Indian conditions. The solutions are cost effective that will cost you approximately 1600 to 1900 Rs. / Ton for facilities of 5000MT to 2500 MT.

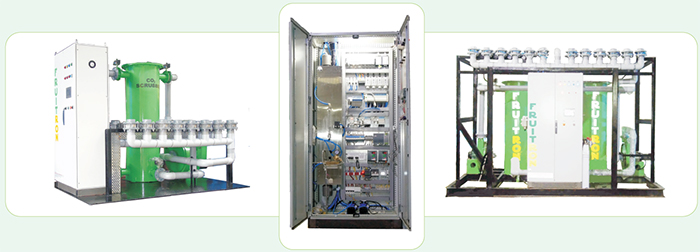

The CA system consists of the following components:
Features:
- Indigenously built for Indian conditions
- A single compact skid with the complete CA solution that can support up to 12 chambers
- An all-encompassing composite panel for gas analyzing, Nitrogen purging and Carbon dioxide scrubbing
- Accurate analysis of chamber atmosphere that leads to precise release of Nitrogen and control of Carbon dioxide to keep the room within desired ranges
- Temperature and RH monitoring, control and data logging for flawless environment control
- Auto calibration and verification, auto trouble shooting and manual over ride possible
- All critical spares available locally
| Model | CA Capacityin MT | Maximum number of chambers | N2 Generator flow in m3 /hr | CO2 Scrubber | Air Compressor Flow in m3 / hr @ 10 to 13 Kg / cm2 | Gas Analyzer | Skid Size l x w x h (meters) |
Connected load in kW | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Output @ 5% O2 | Output @ 1% O2 | Scrubbing capacity in Kg of CO2 per day | Scrubbing vessels | |||||||
| CSL-CAS-100 NCG | 100 | 12 | 5 | 1 | 75 | 1 | 20 | Room O2, CO2, Ethylene and Ammonia (optional) | 2.7 x 2 x 2 | 5 |
| CSL-CAS-500 NCG | 500 | 12 | 7.5 | 1.5 | 75 | 1 | 30 | 2.7 x 2 x 2 | 6 | |
| CSL-CAS-1000 NCG | 1000 | 12 | 10 | 2 | 125 | 1 | 50 | 2 x 2.7 x 2 | 8 | |
| CSL-CAS-2500 NCG | 2500 | 12 | 40 | 5 | 250 | 2 | 160 | 4 x 2.7 x 2 | 35 | |
| CSL-CAS-5000 NCG | 5000 | 12 | 80 | 16 | 500 | 2 | 300 | 5 x 2.7 x 2 | 70 |
